Bug description

Repro steps: 1. Create a mixed chart 2. In one of the queries, set the metric to use a number. In the other, set it to use a % 3. In the Customize tab, set the Primary y-axis format and Secondary y-axis format. One should use something numeric and the other should use something with a % 4. Hover over the tooltips on the chart

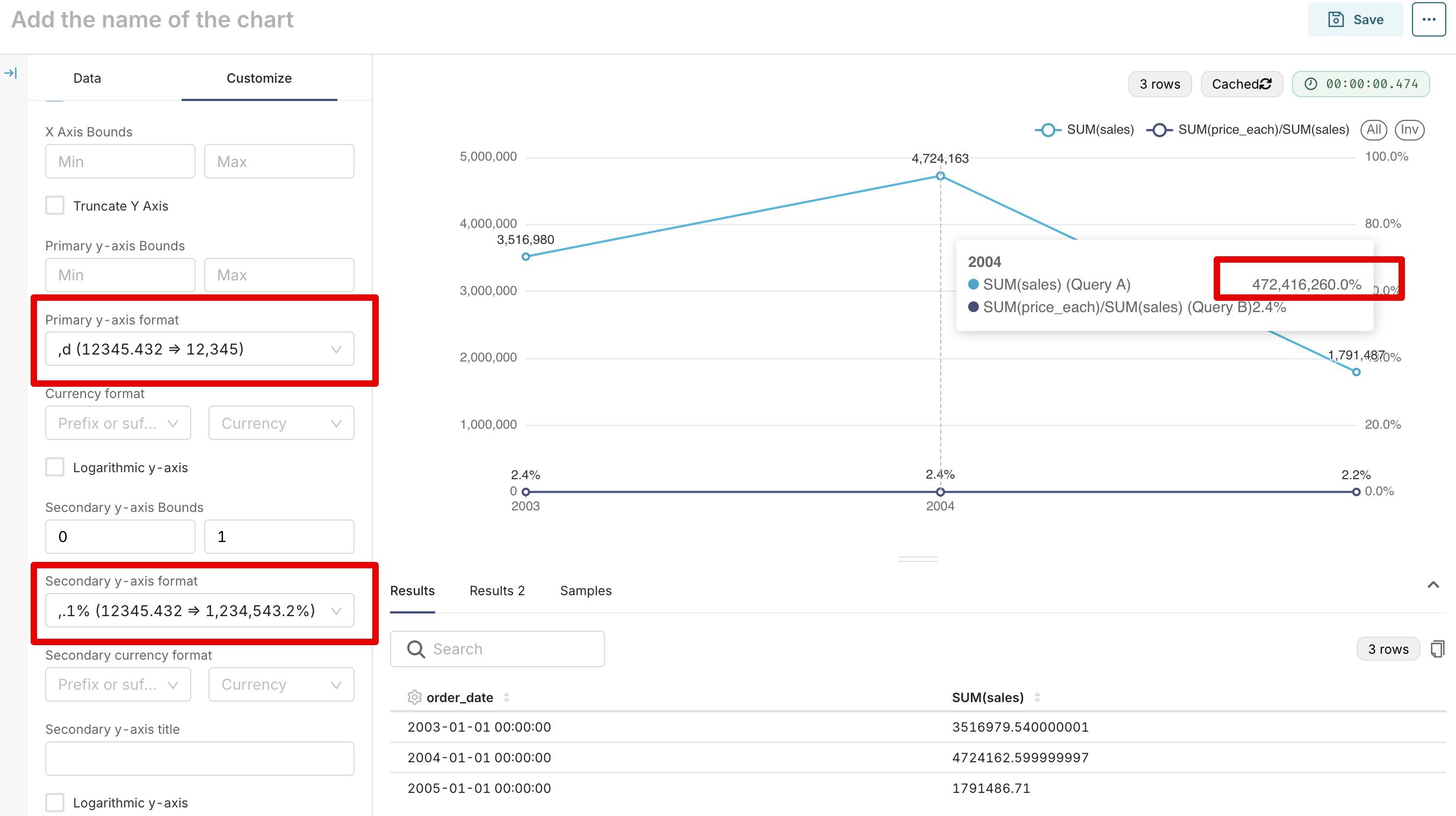

Current behavior: The numeric value is showing as a %. Instead of showing 4724163, it's showing 472416260.0%

Expected behavior: The tooltip displays should match the correct formatting as the axis

Note: repro steps use a % for the secondary y axis but this can be reproduced with other formats in the secondary y axis field

Screenshots/recordings

No response

Superset version

master / latest-dev

Python version

3.9

Node version

16

Browser

Chrome

Additional context

No response

Checklist

  • [x] I have searched Superset docs and Slack and didn't find a solution to my problem.
  • [x] I have searched the GitHub issue tracker and didn't find a similar bug report.
  • [ ] I have checked Superset's logs for errors and if I found a relevant Python stacktrace, I included it here as text in the "additional context" section.

Comment From: dosubot[bot]

This looks like a real bug in the tooltip formatting logic for mixed charts. There aren’t any existing issues or PRs that directly address this problem. The root cause is likely in how Superset matches each series to its axis: the tooltip formatter relies on the series key (name/id) matching exactly between the set membership logic and the tooltip rendering logic. If there’s any mismatch in naming conventions or key construction, the wrong formatter can be applied, so a number might be formatted as a percent (or vice versa) in the tooltip. You can see this logic in the transformProps function for mixed charts, where the formatter is chosen based on whether the series is in the primarySeries or secondarySeries set, but this mapping is fragile and can break if the keys don’t match up as expected (source).

If you want to dig deeper or try a fix, focus on how series keys are constructed and matched in both the series initialization and tooltip formatting logic. Making this mapping more robust should resolve the formatting mismatch.

To reply, just mention @dosu.

How did I do? Good | Irrelevant | Incorrect | Verbose | Hallucination | Report 🐛 | Other  Join Discord Share on X

Comment From: geido

🎉 Preset Bounty Available: $100 USD 🎉

To claim this bounty, please carefully follow the steps below.

📋 Steps to Participate

  1. Review Guidelines:
    Read through the Preset Bounty Program Contribution Guide for complete details on bounty requirements.

  2. Show Your Interest:
    Complete the Preset Bounty Program Survey and comment this issue to express your interest.

  3. Join the Slack Channel:
    After completing the survey, you’ll receive an invitation to the dedicated Apache Superset Slack channel.

  4. Get Assigned:
    To officially start, ensure a Bounty Program Manager has assigned you to this issue.

  5. Submit Your Solution:
    When ready, submit your solution with the Fixes #{issue_number} notation in your Pull Request description.

  6. Claim Your Bounty:
    Sign up at GitPay.me and submit your solution via: https://gitpay.me/#/task/1223

💡 Additional Notes

  • Only developers assigned by a Bounty Program Manager should start working on this issue to win the bounty.
  • Be sure to follow the guide closely to avoid any delays in payment. Please, allow a few days after your PR has been merged for the bounty to be released.

Good luck, and happy coding! 🎉

Comment From: fardin-developer

I am interested in this issue, would love to work on this.
