Apache Dubbo [Bug] org.apache.dubbo.remoting.http12.exception.HttpStatusException: Invoker for gRPC not found

Pre-check

[x] I am sure that all the content I provide is in English.

Search before asking

[x] I had searched in the issues and found no similar issues.

Apache Dubbo Component

Java SDK (apache/dubbo)

Dubbo Version

After starting the consumer, o.a.dubbo.registry.client.metadata.MetadataUtils Failed to get app metadata for revision. the consumer side is triggered when pulling metadata every second, and a consumer-side exception occurs:"UNIMPLEMENTED : Invoker for gRPC not found"； the provider side throws an exception:"Invoker for gRPC not found".

Using version numbers: dubbo-provider: 3.3.5 + springboot:2.7.17 + JDK17 dubbo-consumer: 3.1.11 + springboot:2.7.17 + JDK 17

Server configuration (provider-config)：

dubbo: registry: address: nacos://127.0.0.1:8848?username=nacos&password=nacos register-mode: instance protocols: tri: name: tri port: 8080 dubbo: name: dubbo port: 20880

Steps to reproduce this issue

Triple+JAX-RS

Apache Dubbo [Bug] org.apache.dubbo.remoting.http12.exception.HttpStatusException: Invoker for gRPC not found

[Dubbo provider exception stack]:

[DubboServerHandler-192.168.14.12:8080-thread-190] INFO o.a.d.r.p.tri.h12.AbstractServerTransportListener - traceId: - [DUBBO] An error occurred while processing the http request with GrpcHttp2ServerTransportListener, Http2MetadataFrame{method='POST', path='/org.apache.dubbo.metadata.MetadataService/getMetadataInfo', contentType='application/grpc+proto', streamId=3, endStream=false}, dubbo version: 3.3.5, current host: 192.168.14.12 org.apache.dubbo.remoting.http12.exception.HttpStatusException: Invoker for gRPC not found at org.apache.dubbo.rpc.protocol.tri.h12.grpc.GrpcRequestHandlerMapping.notFound(GrpcRequestHandlerMapping.java:79) at org.apache.dubbo.rpc.protocol.tri.h12.grpc.GrpcRequestHandlerMapping.getRequestHandler(GrpcRequestHandlerMapping.java:64) at org.apache.dubbo.rpc.protocol.tri.route.DefaultRequestRouter.route(DefaultRequestRouter.java:50) at org.apache.dubbo.rpc.protocol.tri.h12.AbstractServerTransportListener.doRoute(AbstractServerTransportListener.java:122) at org.apache.dubbo.rpc.protocol.tri.h12.grpc.GrpcHttp2ServerTransportListener.onPrepareMetadata(GrpcHttp2ServerTransportListener.java:69) at org.apache.dubbo.rpc.protocol.tri.h12.grpc.GrpcHttp2ServerTransportListener.onPrepareMetadata(GrpcHttp2ServerTransportListener.java:49) at org.apache.dubbo.rpc.protocol.tri.h12.AbstractServerTransportListener.lambda$onMetadata$0(AbstractServerTransportListener.java:107) at org.apache.dubbo.common.threadpool.serial.SerializingExecutor.run(SerializingExecutor.java:111) at java.base/java.util.concurrent.ThreadPoolExecutor.runWorker(ThreadPoolExecutor.java:1136) at java.base/java.util.concurrent.ThreadPoolExecutor$Worker.run(ThreadPoolExecutor.java:635) at org.apache.dubbo.common.threadlocal.InternalRunnable.run(InternalRunnable.java:39) at java.base/java.lang.Thread.run(Thread.java:842)

[Dubbo consumer exception stack]:

[Dubbo-framework-metadata-retry-thread-1] WARN o.a.d.r.c.e.l.ServiceInstancesChangedListener - traceId: - [DUBBO] Received address refresh retry event, 1755588333304, dubbo version: 3.1.11, current host: 192.168.14.12, error code: 99-0. This may be caused by unknown error in registry module, go to https://dubbo.apache.org/faq/99/0 to find instructions. 2025-08-19 15:25:43.306 [Dubbo-framework-metadata-retry-thread-1] WARN o.a.d.r.c.e.l.ServiceInstancesChangedListener - traceId: - [DUBBO] Retrying address notification..., dubbo version: 3.1.11, current host: 192.168.14.12, error code: 99-0. This may be caused by unknown error in registry module, go to https://dubbo.apache.org/faq/99/0 to find instructions. 2025-08-19 15:25:43.306 [Dubbo-framework-metadata-retry-thread-1] WARN o.a.d.r.c.e.l.ServiceInstancesChangedListener - traceId: - [DUBBO] Received address refresh retry event, 1755588333304, dubbo version: 3.1.11, current host: 192.168.14.12, error code: 99-0. This may be caused by unknown error in registry module, go to https://dubbo.apache.org/faq/99/0 to find instructions. 2025-08-19 15:25:43.306 [Dubbo-framework-metadata-retry-thread-1] WARN o.a.d.r.c.e.l.ServiceInstancesChangedListener - traceId: - [DUBBO] Retrying address notification..., dubbo version: 3.1.11, current host: 192.168.14.12, error code: 99-0. This may be caused by unknown error in registry module, go to https://dubbo.apache.org/faq/99/0 to find instructions. 2025-08-19 15:25:43.307 [Dubbo-framework-metadata-retry-thread-1] INFO org.apache.dubbo.rpc.model.ModuleModel - traceId: - [DUBBO] Dynamically registering consumer model uupt-middle-ackdemo-service/org.apache.dubbo.metadata.MetadataService:2.0.0 into model Dubbo Module[1.1.0], dubbo version: 3.1.11, current host: 192.168.14.12 2025-08-19 15:25:43.317 [Dubbo-framework-metadata-retry-thread-1] ERROR o.a.dubbo.registry.client.metadata.MetadataUtils - traceId: - [DUBBO] Failed to get app metadata for revision ac086b2ccffbf5ebef12482977fe76ab for type local from instance 192.168.14.12:20880, dubbo version: 3.1.11, current host: 192.168.14.12, error code: 1-39. This may be caused by , go to https://dubbo.apache.org/faq/1/39 to find instructions. org.apache.dubbo.rpc.StatusRpcException: UNIMPLEMENTED : Invoker for gRPC not found at org.apache.dubbo.rpc.TriRpcStatus.asException(TriRpcStatus.java:214) at org.apache.dubbo.rpc.protocol.tri.call.UnaryClientCallListener.onClose(UnaryClientCallListener.java:47) at org.apache.dubbo.rpc.protocol.tri.call.TripleClientCall.onComplete(TripleClientCall.java:106) at org.apache.dubbo.rpc.protocol.tri.stream.TripleClientStream$ClientTransportListener.finishProcess(TripleClientStream.java:216) at org.apache.dubbo.rpc.protocol.tri.stream.TripleClientStream$ClientTransportListener.onTrailersReceived(TripleClientStream.java:295) at org.apache.dubbo.rpc.protocol.tri.stream.TripleClientStream$ClientTransportListener.lambda$onHeader$1(TripleClientStream.java:398) at org.apache.dubbo.common.threadpool.serial.SerializingExecutor.run(SerializingExecutor.java:102) at java.base/java.util.concurrent.ThreadPoolExecutor.runWorker(ThreadPoolExecutor.java:1136) at java.base/java.util.concurrent.ThreadPoolExecutor$Worker.run(ThreadPoolExecutor.java:635) at org.apache.dubbo.common.threadlocal.InternalRunnable.run(InternalRunnable.java:41) at java.base/java.lang.Thread.run(Thread.java:842)

What you expected to happen

protocols: tri: name: tri port: 8080 dubbo: name: dubbo port: 20880

The Dubbo 3.3.x version also encounters this exception during interoperation and does not support the multi-port and multi-protocol configuration method. When it is necessary to use Triple + JAX-RS to provide REST services, single-port multi-protocol is not supported.

The Dubbo provider does not expose the interface: org.apache.dubbo.metadata.MetadataService/getMetadataInfo, only /org.apache.dubbo.metadata.MetadataServiceV2/GetMetadataInfo

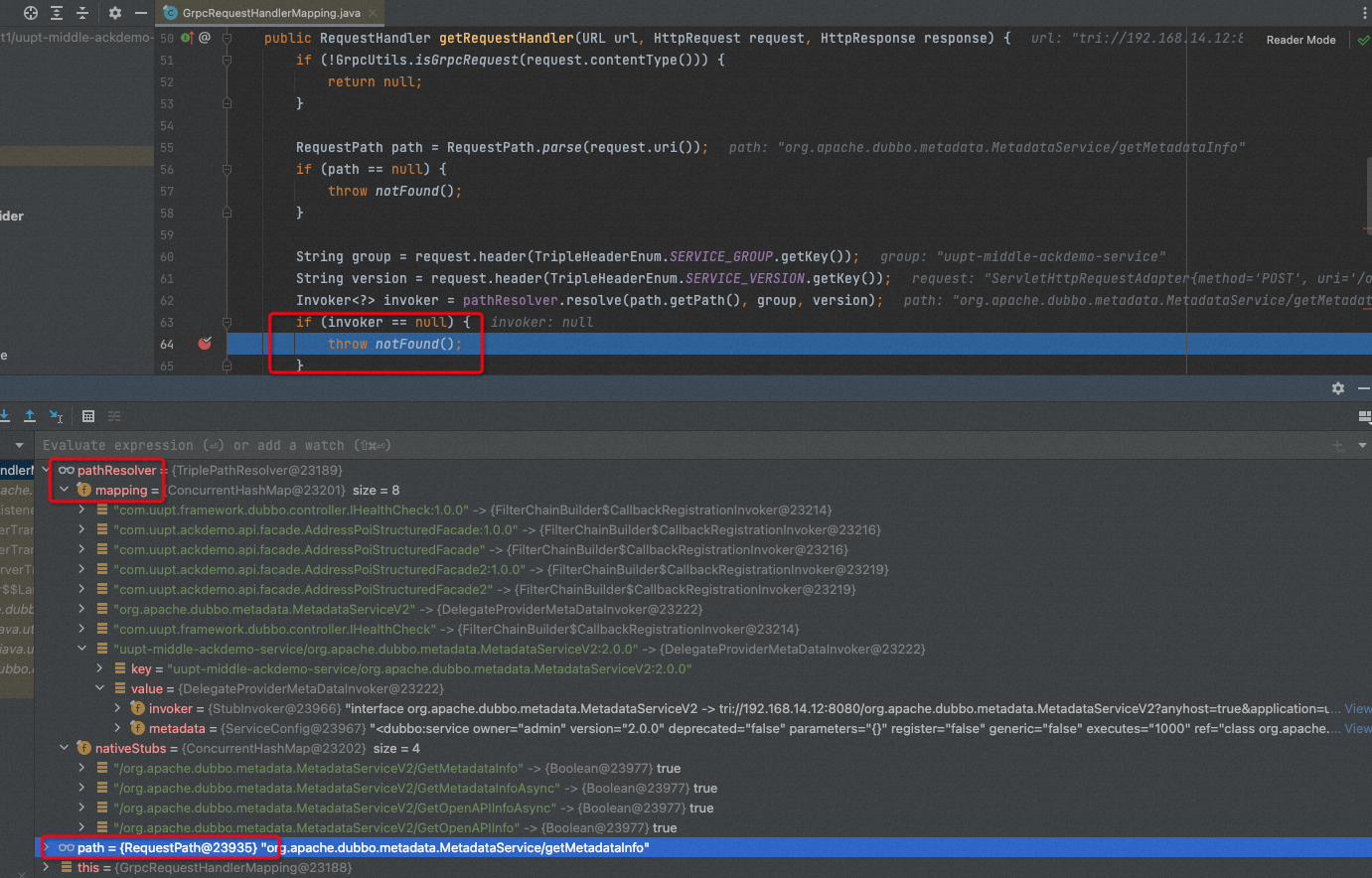

Apache Dubbo [Bug] org.apache.dubbo.remoting.http12.exception.HttpStatusException: Invoker for gRPC not found

Anything else

After starting the consumer, o.a.dubbo.registry.client.metadata.MetadataUtils Failed to get app metadata for revision. the consumer side is triggered when pulling metadata every second

Are you willing to submit a pull request to fix on your own?

[x] Yes I am willing to submit a pull request on my own!

Code of Conduct

[x] I agree to follow this project's Code of Conduct

Comment From: zrlw

set dubbo.onlyUseMetadataV2 of your provider to false

Comment From: zrlw

dubbo:
registry:
address: nacos://127.0.0.1:8848?username=nacos&password=nacos
register-mode: instance
protocols:
tri:
name: tri
port: 8080
dubbo:
name: dubbo
port: 20880

you should use "```" to enclosed your configuration or code snippet at the post to keep its original format.

Comment From: wangdechong

set dubbo.onlyUseMetadataV2 of your provider to false

The configuration dubbo.application.only-use-metadata-v2=false has been set, but no obvious changes have been observed.

spring:
  application:
    name: uupt-demo-service
dubbo:
  registry:
    address: nacos://${nacos.address:127.0.0.1}:8848?username=nacos&password=nacos
    register-mode: instance
  application:
    name: ${spring.application.name}
    qos-enable: true
    only-use-metadata-v2: false
  protocols:
    tri:
      name: tri
      port: 8080
    dubbo:
      name: dubbo
      port: 20880

Comment From: zrlw

debug ExporterDeployListener#onModuleStarted at your provider side to see why metadataServiceExporter doesn't export v1.

Comment From: zrlw

or you might bypass it by changing provider metadataType from local to remote

dubbo:
  application:
      metadata-type: remote

Comment From: wangdechong

debug ExporterDeployListener#onModuleStarted at your provider side to see why metadataServiceExporter doesn't export v1.

The provider's local mode is incompatible with configuring dubbo+tri multi-protocol via the protocols method; refer to the configuration format provided above.

The findFirst() method of org.apache.dubbo.config.bootstrap.builders.InternalServiceConfigBuilder#getRelatedOrDefaultProtocol； The exportV1 selects the Dubbo MetadataService. exportV2 registers tri-protocol MetadataServiceV2

protocol = protocols.stream()
        .map(ProtocolConfig::getName)
        .filter(StringUtils::isNotEmpty)
        .filter(p -> ACCEPTABLE_PROTOCOL.contains(p))
        .findFirst()
        .orElse("");

However, the protocol specified in the metadata content's dubbo.metadata-service.url-params.protocal is tri, as shown below:

dubbo.metadata-service.url-params={"prefer.serialization":"hessian2,fastjson2","version":"2.0.0","dubbo":"2.0.2","release":"3.3.5","side":"provider","port":"50053","protocol":"tri"}

dubbo.endpoints=[{"port":20881,"protocol":"dubbo"},{"port":50053,"protocol":"tri"}]

dubbo.metadata.revision=79f04342a4892eddd387b62ebdf95a12

dubbo.metadata.storage-type=local

meta-v=2.0.0

Changing the provider's metadataType from local to remote can bypass the issue. also affect OpenAPI Schema metadata retrieval; please help check it.
