Golang cmd/link: the value stored in pcHeader in runtime.firstmoduledata is different from runtime.pclntab when using external links on macOS arm64 cgo

Go version

go version devel go1.24-2a10a5351b Wed Aug 14 12:32:08 2024 +0800 windows/amd64

Output of `go env` in your module/workspace:

set GO111MODULE=on
set GOARCH=amd64
set GOBIN=
set GOCACHE=C:\Users\zxilly\AppData\Local\go-build
set GOENV=C:\Users\zxilly\AppData\Roaming\go\env
set GOEXE=.exe
set GOEXPERIMENT=
set GOFLAGS=
set GOHOSTARCH=amd64
set GOHOSTOS=windows
set GOINSECURE=
set GOMODCACHE=C:\Users\zxilly\go\pkg\mod
set GONOPROXY=1
set GONOSUMDB=
set GOOS=windows
set GOPATH=C:\Users\zxilly\go
set GOPRIVATE=
set GOPROXY=https://proxy.golang.org,direct
set GOROOT=E:/Temp/go
set GOSUMDB=sum.golang.org
set GOTMPDIR=
set GOTOOLCHAIN=auto
set GOTOOLDIR=E:\Temp\go\pkg\tool\windows_amd64
set GOVCS=
set GOVERSION=devel go1.24-2a10a5351b Wed Aug 14 12:32:08 2024 +0800
set GODEBUG=
set GOTELEMETRY=local
set GOTELEMETRYDIR=C:\Users\zxilly\AppData\Roaming\go\telemetry
set GCCGO=gccgo
set GOAMD64=v1
set AR=ar
set CC=gcc
set CXX=g++
set CGO_ENABLED=1
set GOMOD=NUL
set GOWORK=
set CGO_CFLAGS=-O2 -g
set CGO_CPPFLAGS=
set CGO_CXXFLAGS=-O2 -g
set CGO_FFLAGS=-O2 -g
set CGO_LDFLAGS=-O2 -g
set PKG_CONFIG=pkg-config
set GOGCCFLAGS=-m64 -mthreads -Wl,--no-gc-sections -fmessage-length=0 -ffile-prefix-map=C:\Users\zxilly\AppData\Local\Temp\go-build119807883=/tmp/go-build -gno-record-gcc-switches

What did you do?

I'm trying to extract the moduledata.pcHeader value from the binaries, and the integration test shows this error since go1.21 release.

Prior to go 1.21, the runtime.text symbol would still be present in the binary even if the -s flag was passed, masking the problem.

What did you see happen?

the value stored in pcHeader in runtime.firstmoduledata is different from runtime.pclntab when using external links on macOS arm64 cgo

Can be reproduced with the following code:

package main

import (
    "debug/macho"
    "encoding/binary"
    "fmt"
)

func main() {
    f, err := macho.Open("bin-darwin-1.23-arm64-cgo")
    if err != nil {
        panic(err)
    }

    pclntabAddr := uint64(0)
    moduledataAddr := uint64(0)

    for _, s := range f.Symtab.Syms {
        if s.Name == "runtime.firstmoduledata" {
            moduledataAddr = s.Value
        }
        if s.Name == "runtime.pclntab" {
            pclntabAddr = s.Value
        }
    }

    if moduledataAddr == 0 {
        panic("runtime.firstmoduledata not found")
    }
    if pclntabAddr == 0 {
        panic("runtime.pclntab not found")
    }

    // read first 8 bytes of runtime.moduledata
    data := make([]byte, 8)

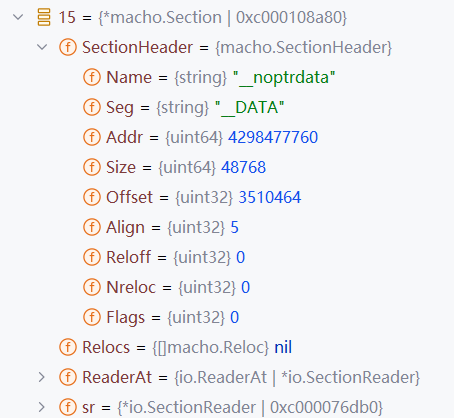

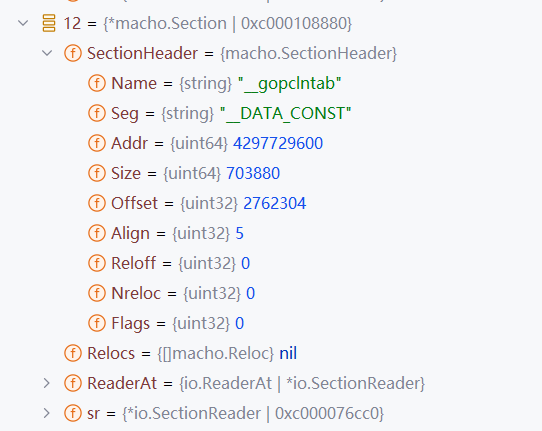

    for _, prog := range f.Sections {
        if prog.Addr <= moduledataAddr && moduledataAddr+8-1 <= prog.Addr+prog.Size {
            if _, err := prog.ReadAt(data, int64(moduledataAddr-prog.Addr)); err != nil {
                panic(err)
            }
            break
        }
    }

    // transfer the pclntabAddr to a byte array, little endian
    pclntabAddrBinary := make([]byte, 8)
    binary.LittleEndian.PutUint64(pclntabAddrBinary, pclntabAddr)

    fmt.Println("runtime.firstmoduledata.pcHeader ptr:")
    for _, b := range pclntabAddrBinary {
        fmt.Printf("%02x ", b)
    }
    fmt.Println()
    // print the first 8 bytes of runtime.pclntab as hex
    fmt.Println("runtime.pclntab:")
    for _, b := range data {
        fmt.Printf("%02x ", b)
    }
    fmt.Println()
}

Will results to

runtime.firstmoduledata.pcHeader ptr:
40 26 2a 00 01 00 00 00
runtime.pclntab:
40 26 2a 00 00 00 10 00

Some scripts indicates similiar problem on most recent major Go releases:

// format
// pclntab addr value
// generate search hash
// real value in the binary

19
pclntabAddr 4295817152
c0 f7 0c 00 01 00 00 00
c0 f7 0c 00 00 00 10 00

20
pclntabAddr 4295805984
20 cc 0c 00 01 00 00 00
20 cc 0c 00 00 00 10 00

21
pclntabAddr 4298061728
a0 37 2f 00 01 00 00 00
a0 37 2f 00 00 00 10 00

22
mdAddr 4298416864 mdSect __noptrdata off 6112
pclntabAddr 4297689728
80 8a 29 00 01 00 00 00
80 8a 29 00 00 00 10 00

23
pclntabAddr 4297729600
40 26 2a 00 01 00 00 00
40 26 2a 00 00 00 10 00

This only happens on macOS arm64 with external link.

Here's some binary as input:

https://github.com/Zxilly/go-testdata/releases/download/latest/bin-darwin-1.22-arm64-strip-cgo https://github.com/Zxilly/go-testdata/releases/download/latest/bin-darwin-1.22-arm64-strip-pie-cgo https://github.com/Zxilly/go-testdata/releases/download/latest/bin-darwin-1.23-arm64-strip-cgo https://github.com/Zxilly/go-testdata/releases/download/latest/bin-darwin-1.23-arm64-strip-pie-cgo

What did you expect to see?

These value should keep same as other arch.

Comment From: gabyhelp

Related Issues and Documentation

_{(Emoji vote if this was helpful or unhelpful; more detailed feedback welcome in this discussion.)}

Comment From: Zxilly

This is an advisory issue rather than a bug, as it doesn't seem to affect the operation of the Go binary.

Comment From: ianlancetaylor

CC @cherrymui @golang/runtime

Comment From: cherrymui

I think the moduledata references pcheader with a dynamic relocation (or the equivalent on Mach-O, a "bind" or "rebase" entry). The data you read directly from moduledata is without the relocation applied. You'll need to decode and apply the relocation.

It is possible that the Go linker and C linker (or even different versions of the C linker) use different relocation mechanism, and the pre-relocated data may or may not be meaningful. They are semantically equivalent so at program run time it always point to the right data.

I'm not sure if there is anything we can do.

Comment From: Zxilly

If that's the reason, I'm wondering why buildmode being exe or pie doesn't change this behaviour. I looked up some other issues, is it because Apple doesn't support generating non-pie binaries anymore either? Similarly, this behaviour is not observed on amd64.

Comment From: cherrymui

is it because Apple doesn't support generating non-pie binaries anymore either?

That is correct.

Again, the un-relocated data varies depending on architecture, link mode, linker version, etc.. It may happen to be useful, or not.

Comment From: Zxilly

I investigated the issue further and it doesn't seem to be a relocation issue, please check the attached image, the corresponding sections for moduledata and pclntab all have Nreloc of 0
