Apache Superset Problem Exporting Charts as Image

Bug description

Hi Superset Community,

I have a problem exporting Charts as Image, from multiple Dashboards and instance of Superset.

How to reproduce the bug

Go to a Dashboards with Charts
Click the three dots on the top right of a charts
Download => Download as Image

Screenshots/recordings

Here is the result for my charts : valeur-moyennes-selon-surface-2024-05-27T14-20-12 529Z

I was wondering if maybe this was related to the fact that the query is quite complicated + a lot of filters in the dashboard so i tried to export another charts from the examples datasets.

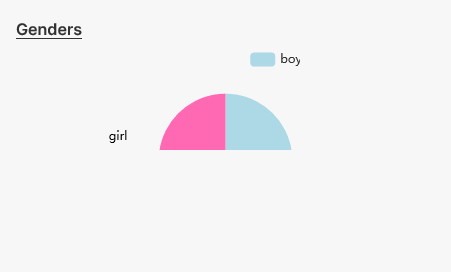

genders-2024-05-27T14-21-50 342Z

Not quite right too...

Superset version

4.0.1

Python version

3.10

Node version

Not applicable

Browser

Firefox

Additional context

I use Apache Superset 4.0.1 in Local using Windows and a WSL Backend, but this problem was also on my prod. env with Apache Superset 4.0.0 used with Cloudron which handles the deployment.

Even if template processing is ON, i can't download image, with or without Jinja Templating in them.

Here are my superset_config.py flags in local :

SECRET_KEY` = ""

SQLALCHEMY_DATABASE_URI = ''

WTF_CSRF_ENABLED = True (tried with False too...)
WTF_CSRF_EXEMPT_LIST = []
# A CSRF token that expires in 1 year
WTF_CSRF_TIME_LIMIT = 60 * 60 * 24 * 365

MAPBOX_API_KEY = ''

LANGUAGES = {
        'en': {'flag': 'us', 'name': 'English'},
        'fr': {'flag': 'fr', 'name': 'French'}
}

ENABLE_JAVASCRIPT_CONTROLS = True

APP_NAME = "Superset Local"

WELCOME_MESSAGE = "secret"

PRIMARY_COLOR = "green"

ENABLE_TEMPLATE_PROCESSING = True

CONTENT_SECURITY_POLICY_WARNING = False

TALISMAN_ENABLED = False

DEFAULT_FEATURE_FLAGS = {
        "ENABLE_TEMPLATE_PROCESSING" : True,
}

Here is my python stack trace, minus the get and post request : ```` Superset.explore_json This API endpoint is deprecated and will be removed in version 4.0.0 2024-05-27 16:34:36,711:WARNING:superset.views.base:Superset.explore_json This API endpoint is deprecated and will be removed in version 4.0.0 2024-05-27 16:34:36,717:DEBUG:parsedatetime:eval - with context - False, False



### Checklist

- [X] I have searched Superset docs and Slack and didn't find a solution to my problem.
- [X] I have searched the GitHub issue tracker and didn't find a similar bug report.
- [X] I have checked Superset's logs for errors and if I found a relevant Python stacktrace, I included it here as text in the "additional context" section.

**Comment From: dosubot[bot]**

<!-- Greeting -->
Hello @CharlesNkdl, I'm here to help you with the issue you're facing. I'm a bot that can assist you with bug resolution, answer your questions, and guide you to become a contributor. Let's work together to get this sorted out.

<!-- Answer -->
To resolve the issue of exporting charts as blank images from multiple dashboards in Apache Superset version 4.0.1, you need to ensure that the charts are fully loaded before initiating the export process. The provided code snippet shows the `handleBulkChartExport` function, which handles the export of charts.

Here is the relevant part of the code:

```tsx
const handleBulkChartExport = (chartsToExport: Chart[]) => {
    const ids = chartsToExport.map(({ id }) => id);
    handleResourceExport('chart', ids, () => {
      setPreparingExport(false);
    });
    setPreparingExport(true);
  };

To ensure that charts are fully loaded before exporting, you might need to add a check to confirm that the charts are rendered and ready. This can be done by verifying the loading state and ensuring that the charts are not in a loading state before calling the handleBulkChartExport function.

Here is an example of how you might modify the function to include such a check:

const handleBulkChartExport = (chartsToExport: Chart[]) => {
    if (loading) {
      addDangerToast(t('Charts are still loading. Please wait until all charts are fully loaded before exporting.'));
      return;
    }

    const ids = chartsToExport.map(({ id }) => id);
    handleResourceExport('chart', ids, () => {
      setPreparingExport(false);
    });
    setPreparingExport(true);
  };

This modification ensures that the export process is only initiated when the charts are fully loaded, preventing the issue of exporting blank images ^[1].

#### Details

**About Dosu** This response is meant to be useful and save you time. It is **not meant to be a precise solution**, but rather a starting point for your own research. Help me be more useful! Please leave a 👍 if this is helpful and 👎 if it is irrelevant.

To continue the conversation, mention @dosu.

Comment From: visharavana

@CharlesNkdl Which browser are you using? I am also facing this problem in the Firefox browser, but when I use Chrome, it's working well.

Comment From: rusackas

Seems to be an issue in Safari too.

Comment From: CharlesNkdl

@visharavana I'm using Firefox. The solution was so simple i just didn't thought of it, i'm kind of embarassed, thank you ! I tried on Microsoft Edge and it worked

Maybe due to firefox and safari not being chromium-based, compared to Chrome and Edge

Comment From: stasDomb

I still have this type of problem all-final-acceptance-2024-06-17T13-44-33 596Z

Version 4.0.1 (4.0.0) I added to Feature Flags:

FEATURE_FLAGS = {
          "DASHBOARD_CROSS_FILTERS": True,
          "DASHBOARD_EDIT_CHART_IN_NEW_TAB": True,
          "DASHBOARD_RBAC": True,
          "EMBEDDED_SUPERSET": True,
          "ENABLE_TEMPLATE_PROCESSING": True,
          "PLAYWRIGHT_REPORTS_AND_THUMBNAILS": True
        }

But it doesn't work. In Safari there are now charts. In Chrome there are a few (as in picture). Does anybody can help with this ?

Comment From: Gordonei

Also seeing this with 4.1.1 and Firefox 135.0.1, for both dashboards and charts:

Chrome and M$ Edge seem to be working fine. Not sure if it's relevant or not, but the partial Firefox download seems to be wider than the complete Chrome one.

Comment From: stanislav-dombrovskiy-dp

Version 4.1.1 Google Chrome - Version 133.0.6943.142 (Official Build) (arm64) It doesn't work (pdf or jpg)

Comment From: doriansechal

Same problem with Firefox and Safari, but it works on Chromium-based engines (Brave, Chrome...).

Comment From: LHARISMENDY

Same problem here, is there a temporary solution?

Comment From: rusackas

These all seem like they might effectively be the same issue:

https://github.com/apache/superset/issues/29394 https://github.com/apache/superset/issues/31158 https://github.com/apache/superset/issues/29719 https://github.com/apache/superset/issues/28713 https://github.com/apache/superset/issues/27532

Can anyone here test this with DASHBOARD_VIRTUALIZATION set to false? I have a suspicion that may fix it. If so, we can probably just disable viewport virtualization when the headless browser is building the screencap.
