Bug description
Environment
- Superset version: v6.x
- Upgrade path: imported charts from v4 → v6
- Database: ClickHouse
- Chart type: Line chart
Description
When using a string dimension for the x‑axis (e.g. LEFT(toString(day_id), 6)), the line chart connects non‑adjacent categories even though intermediate categories exist in the dataset.
With a numeric dimension (toInt32(LEFT(...))), the chart renders correctly and includes all intermediate points.
Steps to Reproduce
- Run the following query in SQL Lab:
-- INT version
SELECT
toInt32(LEFT(toString(day_id), 6)) AS month_id,
sum(value) AS total_value
FROM (
SELECT
toInt32(formatDateTime(d, '%Y%m%d')) AS day_id,
toDayOfYear(d) AS value
FROM (
SELECT addDays(toDate('2024-01-01'), number) AS d
FROM numbers(366) -- leap year
)
WHERE d < toDate('2024-05-15') OR d > toDate('2024-08-10')
)
GROUP BY month_id
ORDER BY month_id;
-- STRING version
SELECT
LEFT(toString(day_id), 6) AS month_id,
sum(value) AS total_value
FROM (
SELECT
toInt32(formatDateTime(d, '%Y%m%d')) AS day_id,
toDayOfYear(d) AS value
FROM (
SELECT addDays(toDate('2024-01-01'), number) AS d
FROM numbers(366)
)
WHERE d < toDate('2024-05-15') OR d > toDate('2024-08-10')
)
GROUP BY month_id
ORDER BY month_id;
- Both queries return the following aggregated dataset:
| month_id | SUM(value) |
|---|---|
| 202401 | 496 |
| 202402 | 1334 |
| 202403 | 2356 |
| 202404 | 3195 |
| 202405 | 1799 |
| 202408 | 4914 |
| 202409 | 7785 |
| 202410 | 8990 |
| 202411 | 9615 |
| 202412 | 10881 |
- Create two line charts:
- Chart A: x‑axis =
month_id(INT) - Chart B: x‑axis =
month_id(STRING)
- Chart A: x‑axis =
Expected Behavior
Both charts should render a line through all categories present in the dataset, including 202408.

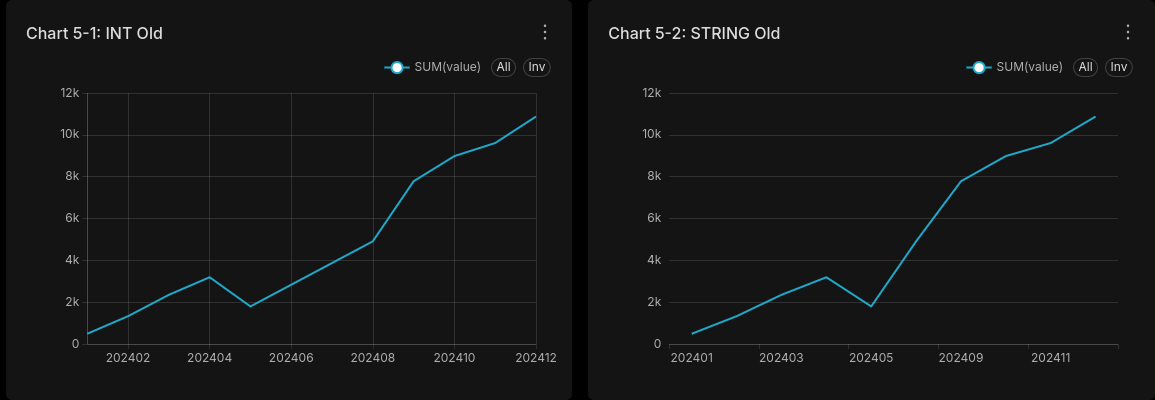

Actual Behavior

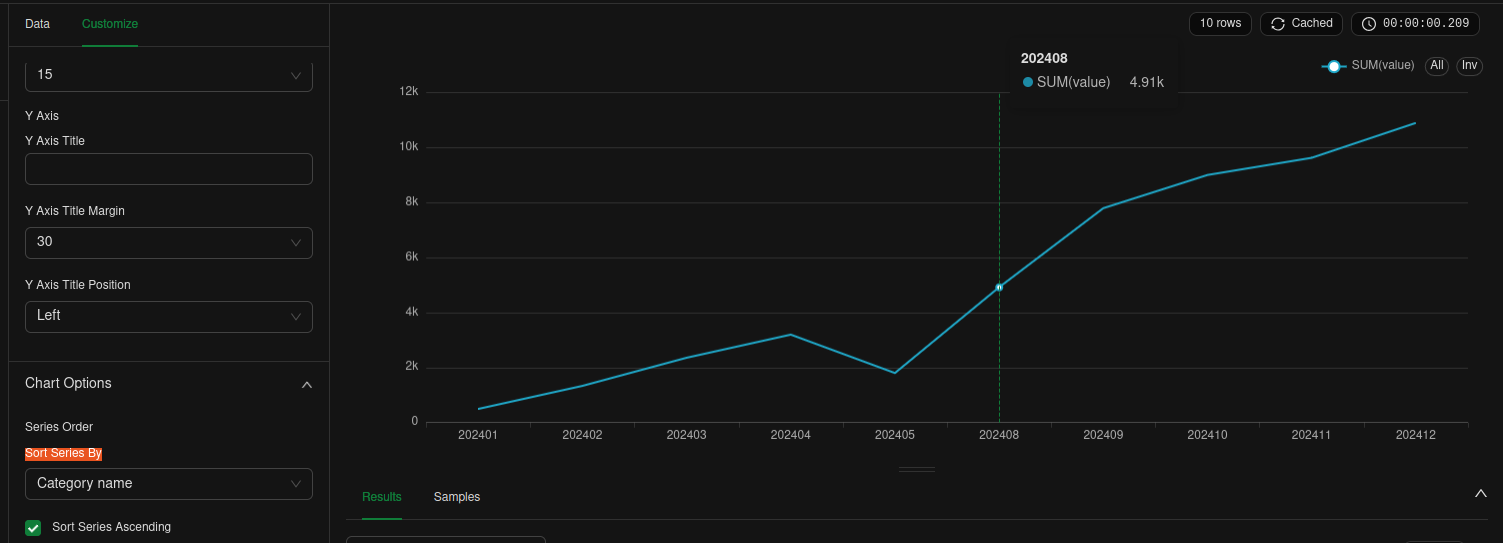

- INT chart: renders correctly → line goes

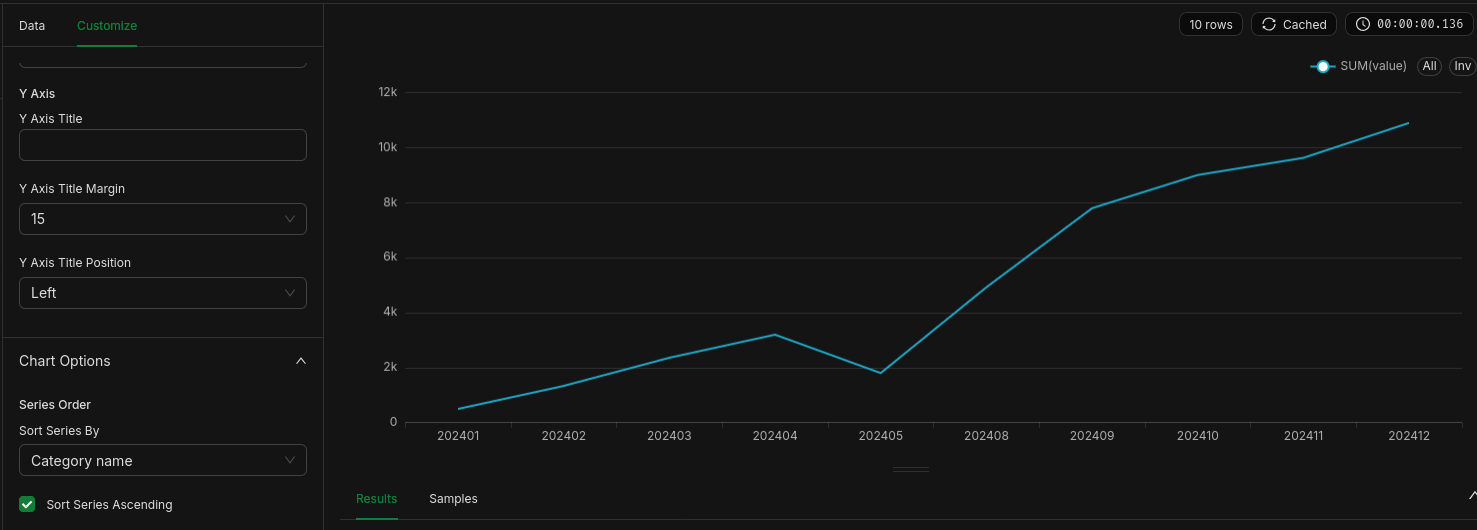

202405 → 202408 → 202409. - STRING chart: skips
202408and draws a line directly from202405 → 202409, even though202408exists in the dataset.
Notes
- This behavior changed between Superset v4 and v6.
- In v4, both INT and STRING behaved the same.
- In v6, categorical (string) axes appear stricter, but this results in valid categories being skipped in line charts.
